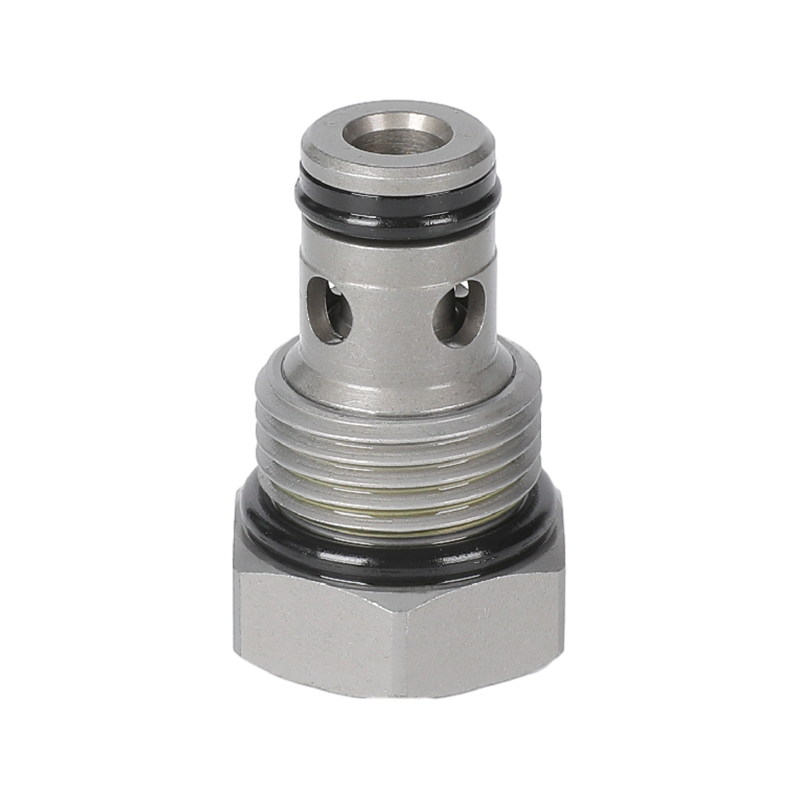

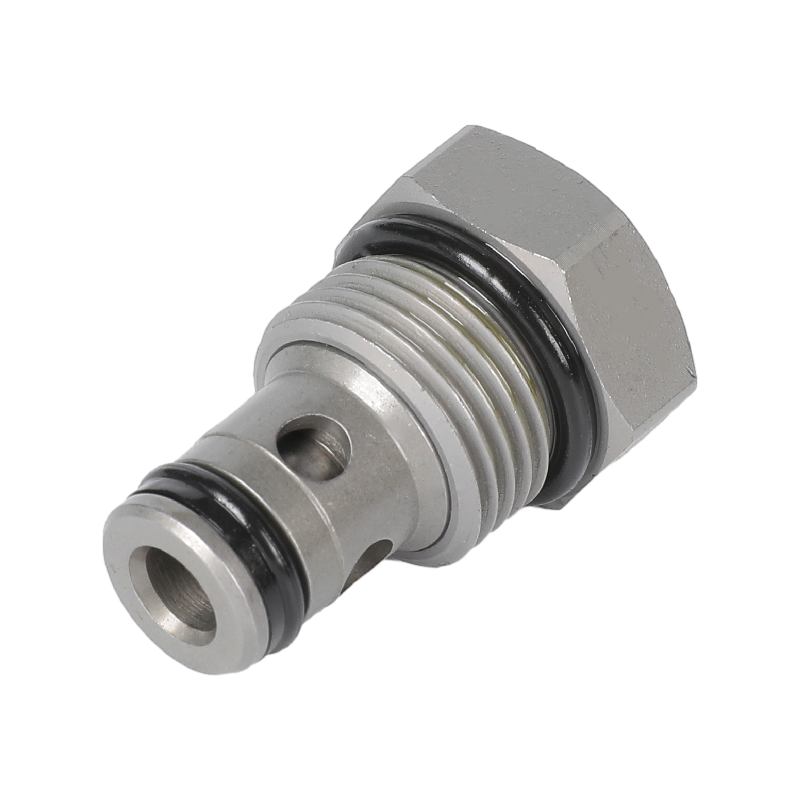

Check valve: cone valve type
Ordering model |
GCV08-B20-0-Y-Z |
Functional symbols: |
|

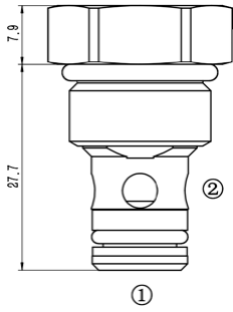

Unit: mm A threaded plug-in hydraulic one-way valve used as a one-way shut-off or load holding device. Allow the oil to flow from ① to ②, while stopping the reverse flow of the oil. The fully guided valve core closes the valve port under the pressure of the reset spring until the pressure at point ① is sufficient to open point ②. |
|
||
Unit: mm
Maximum torque of 27.2Nm |
|||
Technical Parameter |
|||
Rated pressure: 240bar |
|||
Rated flow rate: see performance chart |
|||
Pressure resistance: 350bar |
|||
Jack: VC08-2 |
|||
Installation torque: 27.2Nm |
|||
Weight: 0.05kg |
|||
Operating oil temperature range: -40~120 ℃ |
|||
Internal leakage rate: 0.1mL/min (Max.2 drops)/ min@240bar ) |
|||
Media filtration accuracy: 20/18/14 ( requirement) |
|||
Definition of opening pressure: When the flow rate reaches 16.4mL/min, the measured pressure value at point ① is bar |
|||
Installation location requirement: unlimited |
|||

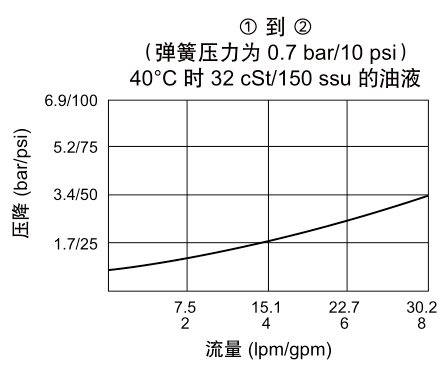

Performance Curve |
|
||
Y |
Seal options |
||
N |
Nitrile rubber (standard) |
||
V |
VITON |
||
P |
polyurethane |
||
Z |
Enable pressure option |
||
4 |
0.3bar |
||
10 |
0.7bar |
||
25 |
1.7bar |
||
60 |
4.1bar |
||
100 |
6.9bar |
||
150 |
10.3bar |
||
200 |
13.8bar |
||
270 |
18.3bar |
